Kaidun Borehole Camera System

Brand Name:	KAIDUN
MOQ:	1
Payment Terms:	T/T
Supply Ability:	5000 units/year

Detail Information

Product Description

Detail Information

Place of Origin:

China

Camera Size:

φ45mm ×422mm

Sensor:

1/3"CMOS 2MP Pixels

Watrerproof Level:

0-500m

Camera Wide-angle Range:

120°

Control Box:

Built-in 7000mA Lithium-ion Battery,which Can Work Continuously For 6-8 Hours

Electric Winch:

The Diameter Of The Cable Is φ8.0 Mm,cable Length 300m As Standard(up To 500m Max)

Product Composition:

Camera System;Control Unit And Display Features;Electric Winch

Packaging Details:

Wooden box packaging / cardboard box packaging

Supply Ability:

5000 units/year

Highlight:

AHD HD Binocular Rotating Camera

13.3-inch high-definition display

1920*1080 resolution

Product Description

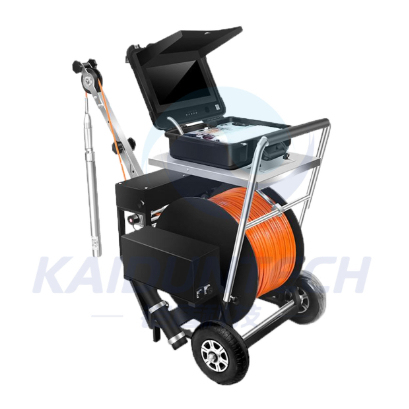

Kaidun Borehole Camera System

Key Features

45mm AHD HD Binocular Rotating Camera;
13.3-inch high-definition display, 1920*1080 resolution;
AHD DVR control box, can take pictures, video, audio recording, U disk storage;
Hand-pushed manual winch flexible cable winding frame, and digital meter function;
The diameter of the flexible copper shaft flexible cable is 8mm, and the length can be customized;
Electric spooling frame automatic cable arrangement function.

Product Composition

Kaidun Borehole Camera System 1

Camera System

Camera size: Φ45mm x 422mm
HD rotate camera side view to pan 360° rotation,
Sensor: 1/3" CMOS 2MP pixels ·Sapphire lenses, stainless steel housing
Waterproof level: 0-500m
Camera wide-angle range: 120°
6 high-brightness LEDs in one eye, adjustable light
The camera has a built-in compass, thermometer function.

Kaidun Borehole Camera System 2

Control Unit and Display Features

Control box technical parameters
13.3-inch IPS LCD LCD HD display
HD DVR system, 720P MP4 video interface
USB wireless keyboard
Built-in 7000mA lithium-ion battery, which can work continuously for 6-8 hours
The display image has the function of zooming in and out.
Automatic pay-off, take-up function, the fastest 5S/turn

Kaidun Borehole Camera System 3

Eletric Winch

Flexible copper axis cable cable, long cable has a good image effect
The diameter of the cable is Φ8.0 mm
Cable length 300 m as standard (up to 500 m max)
Portable hand winch cable holder with meter counter function with error less than 1%
Automatic wiring function of electric spooling frame

Application Scenarios

Other Application Scenarios:Pipeline Maintenance;Underwater exploration etc

Service

You can have the product replaced within 7 days due to quality problem and the quality guarantee period for this product is one year.

You can also get the favorable promotions.
In the following conditions the product is not considered within the quality guaranteescope:
- Client cannot bring forth the quality guarantee card and invoice or receipt of purchasing;
- Improper service conditions,such as unmatched power,ambient temperature,humidity or lightingcaused malfunction;
- Malfunction caused by accident,negligence,disaster incorrect operation or network attack;
- Malfunction or damage in installation,repair,modification or dismantle caused by unauthorizedpersonnel;
- Out of guarantee period.
If you have any dissent on technical service provided by distributor,please lodge acomplaint to the customer's service center of Kaidun.
The quality guarantee card will be validated only after it's stamped by the after-service provider.
