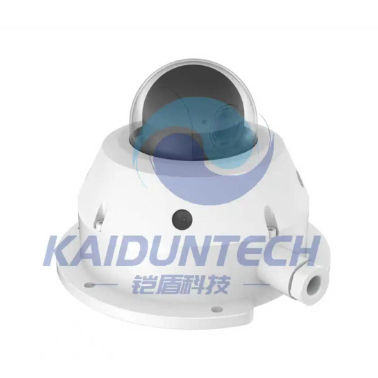

2MP 4X CCS Type Approval Anti-Corrosion PTZ Dome Marine CCTV Camera
Key Features
Service
Application Scenarios
Container Vessel, Bulk Vessel, Oil Tanker, Cruise Vessel, Yacht, Oil/Gas Drilling Platform, Oil Depots, Sea Port
Other application areas: desert drill sites,offshore rigs,mechanical engineering,biogas plants,military,electric power,hydraulic power,railway,metallurgy,natural gas extraction,drilling platform,aerospace,marine,armed police,border defense,vessels,fireworks production,ports etc.
Parameters
| Camera Module | |
| Image Sensor | 1/3"progressive scan CMOS |
| Min.Illumination | Color:0.005 Lux @(F1.6,AGC ON) B/W:0.001 Lux @(F1.6,AGC ON) 0 Lux with IR |
| White Balance | Auto/Manual/ATW(Auto-tracking White Balance)/Indoor/Outdoor/Fluorescent Lamp/Sodium Lamp |
| Gain | Auto/Manual |
| Shutter Time | 50Hz:1/1 s to 1/30,000 s 60Hz:1/1 s to 1/30,000 s |
| Day &Night | IR Cut Filter |
| Digital Zoom | 16X |
| Privacy Mask | 24 programmable privacy masks |
| Focus Mode | Auto/Semi-automatic/Manual |
| WDR | 120 dB WDR |
| Lens | |
| Focal Length | 2.8 mm to 12 mm,4×optical zoom |
| Zoom Speed | Approx.2s(optical lens,wide-tele) |
| Field of View | Horizontal field of view:100.5°to 32.6°(Wide-Tele) Vertical field of view:52.8°to 18.3°(Wide-Tele) Diagonal field of view:120.2°to 37.5°(Wide-Tele) |
| Working Distance | 10 mm to 1500 mm(wide-tele) |
| Aperture Range | F1.6 to F2.7 |
| PTZ | |
| Movement Range(Pan) | 0°to 355° |
| Pan Speed | Configurable,from 0.1/s to 100°/s.Preset speed:100°/s |
| Movement Range (Tilt) | 0°to 90° |
| Tilt Speed | Configurable,from 0.1/s to 100°/s.Preset speed:100°/s |
| Proportional Zoom | Yes |
| Presets | 300 |
| Power-off Memory | Yes |
| Compression Standard | |
| Video Compression | Main Stream:H.265+/H.265/H.264+/H.264 Sub-stream:H.265/H.264/MJPEG Third Stream:H.265/H.264/MJPEG |
| H.264 Type | Baseline profile/main profile/high profile |
| H.264+ | Yes |
| H.265+ | Yes |
| Video Bitrate | 32 Kbps to 16384 Kbps |
| Audio Compression | G.711alaw/G.711ulaw/G.722.1/G.726/MP2L2/PCM |
| Audio Bitrate | 64 Kbps(G.711)/16 Kbps(G.722.1)/16 Kbps(G.726)/32 Kbps to 192 Kbps(MP2L2) |
| SVC | Yes |
| Smart Features | |
| Basic Event | Motion Detection,Video Tampering Detection,Exception |
| Smart Event | Face detection,intrusion detection,line crossing detection,region entrance detection,region exiting detection,object removal detection,unattended baggage detection,audio exception detection |
| Smart Record | ANR(Automatic Network Replenishment),dual-VCA |
| ROI | Main stream,sub-stream,and third stream respectively support four fixed areas. |
| IR | |
| IR Distance | 20 m |
| Smart IR | Yes |
| Image | |
| Max.Resolution | 1920×1080 |
| Main Stream | 50Hz:25fps(1920×1080,1280×960,1280×720) 60Hz:30fps(1920×1080,1280×960,1280×720) |
| Sub-Stream | 50Hz:25fps(704×576,640×480,352×288) 60Hz:30fps(704×480,640×480,352×240) |
| Third Stream | 50Hz:25fps(1280×720,704×576,640×480,352×288) 60Hz:30fps(1280×720,704×480,640×480,352×240) |
| lmage Enhancement | 3D DNR,EIS,Regional Exposure,Regional Focus |
| Network | |
| Network Storage | Built-in memory card slot,support microSD/SDHC/SDXC,up to 256 GB;NAS(NFS,SMB/CIFS),ANR |
| Alarm Linkage | Alarm actions,such as Memory Card Video Record,Trigger Recording,Notify Surveillance Center,Upload to FTP/Memory Card/NAS,Send Email,etc. |
| Protocols | Pv4/IPv6,HTTP,HTTPS,Qos,FTP,SMTP,UPnP,SNMP,DNS,DDNS,NTP,RTSP,RTCP,RTP,TCP/IP,DHCP,PPPoE,Bonjour |
| API | ONVIF (Profile S,Profile G,Profile T),ISAPI,SDK |
| Simultaneous Live View | Up to 20 channels |
| User/Host | Up to 32 users.3 user levels,administrator,operator and user |
| Security Measures | User authentication (ID and PW),Host authentication (MAC address);HTTPS encryption;IEEE 802.1x port-based network access control;IP address filtering |
| Client | iVMS-4200,Hik-Central,Hik-Connect |
| Web Browser | IE8 to 11,Chrome 31.0+,Firefox 30.0+,Edge 16.16299+ |
| Wi-Fi | |
| Standard | IEEE802.11b,802.11g,802.11n,transmission distance:50 m(without interference) |
| Frequency Range | 2.400 GHz to 2.483 GHz |
| Channel Bandwidth | 20/40 MHz |
| Security | 64/128-bit WEP,WPA/WPA2,WPA-PSK/WPA2-PSK,WPS |
| Transmission Rate | 11b:11Mbps;11g:54Mbps;11n (20MHz):150Mbps;11n(40MHz):300Mbps |
| Interface | |
| Audio Interface | 1-ch audio input (mic in/line in)and 1-ch audio output (line out) 1 built-in microphone |
| Network Interface | 1 RJ4510 M/100 M Ethernet,PoE |
| Power Output | 12 VDC,max.60 mA |
| General | |
| Power | DC 12 V;PoE (802.3af) |
| Dimension | Ø182mm×135mm |
| Weight | 4kg |
| Operating Condition | -40°C to 60℃.Humidity 100% or less(non-condensing) |
| DORI | |
| Detection Distance | 130.9m |
| Observe Distance | 51.9m |
| Recongize Distance | 26.2m |
| Identify Distance | 13.1m |
