| Brand Name: | KAIDUN |
| Model Number: | KDQ-UDC-PTZ202IR |
| MOQ: | 1 |
| Payment Terms: | T/T |
| Supply Ability: | 5000 units/year |

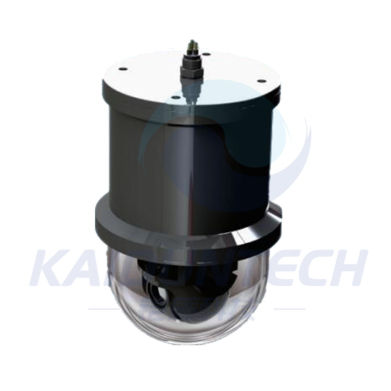

Underwater HD Network PTZ Dome Camera
Key Features
Service
Application Scenarios
Other Application Scenarios: Pipeline Maintenance;Underwater exploration etc
Parameters
| Product name | Underwater HD Network PTZ Dome Camera |
| Imaging sensor | 1/2.9"2.0M SONY323 CMOS |
| Signal | Network signal |
| Resolutions | 2MP |
| Rotation Speed | Horizontal:0.6°~200°/S Vertical:3.5°~30°/S |
| Angle of rotation | Horizontal direction of 360°continuous rotation,vertical direction of 0°-90°,no monitoring blind area |
| Network interface | RJ45 network port,support 10M/100M network data |
| Compatibility | TCP/IP,HTTP,DHCP,DNS,DDNS,RTP,RTSP,PPPoE,SMTP,NTP,UPnP protocol |
| Protocol support | Support for standard ONVIF,GB28181 protocols |
| Camera lens | 4.9-9.2mm |
| Function | Support 220 preset bits;Support 8 cruise scans,each can add 32 preset |
| Support 4 pattern scans with total recording time greater than 10 minutes;Support two-point line scanning | |
| Support the ratio doubling function,the rotation speed can be automatically adjusted according to the lens doubling multiple |
|
| Support the over watch function,the preset point /cruise scan can be automatically called after the idle state stays for a specified time (including the idle state entered after the power is on) |
|
| Enclosure material | Stainless steel/titanium alloy |
| Depth Rating | 0-100 Meters |
| Supply Voltage | 48VDC |
| Temperature range | -30°C~+60°C |
| Dimension | 180X267.5mm(excluding 34mm connector) |
| Weight | 6KG (stainless steel) |
| Packing List | Cable,adapter,warranty card,pressure report |
| Custom-enabled | Degree of depth |
| Sensor (temperature,pressure...) | |
| Monitor Controller |
