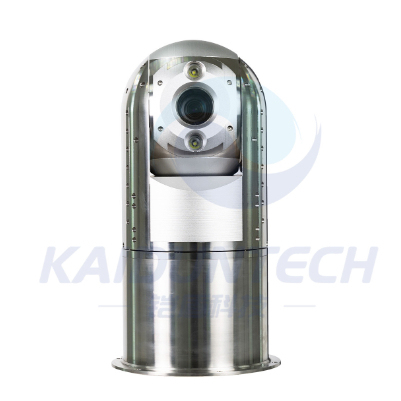

2MP Underwater Network PTZ Dome Camera
Key Features
Service
Application Scenarios
Other Application Scenarios:Pipeline Maintenance;Underwater exploration etc
Parameters
| Camera parameters | |
| Sensor type | 1/2.8”Progressive Scan CMOS |
| Minimal illumination | Color:0.001 Lux @(F1.69,AGC ON);Black and white:0.0005 Lux @(F1.69,AGC ON) |
| Electronic shutter | 1/25 Seconds to 1/100,000 seconds;Slow shutter support |
| Day and night conversion mode | Automatic ICR infrared filter type |
| Lens parameters | |
| Focal distance | 4.8-48mm,10xoptical zoom |
| Iris diaphragm | F1.69-F 3.72 |
| Horizontal field of view angle | 45-3 Degrees(wide Angle-looking far) |
| Near camera distance | 100Mm-1500mm(wide Angle-far) |
| Change the speed | About 3 seconds (optical,wide Angle-looking) |
| Compression standard | |
| Video compression standard | H.265/H.264 |
| H.265 Ending type | Main Profile |
| H.264 Ending type | BaseLine Profile/Main Profile/High Profile |
| Video compression code rate | 32 Kbps~16Mbps |
| Audio compression standard | G.711A/G.711U/G.722.1/G.726/MP2L2/AAC/PCM |
| Audio compression code rate | 64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)/16-64Kbps(AAC) |
| Image parameters(maximum image size:1920*1080) | |
| Main code flow resolution | 50Hz:25fps(1920×1080,1280×960,1280×720);60Hz:30fps(1920×1080,1280×960,1280×720) |
| Third code stream resolution with frame rate |
Independent of the main code stream setting,maximum support:50Hz:25 fps(704*576);60Hz:30 fps(704*576) |
| Image Settings | Saturation,brightness,contrast,and sharpness are adjustable through the client or browser |
| Backlight compensation | Supported,and can have customizable areas |
| Exposure mode | Automatic exposure/aperture priority/shutter priority/manual exposure |
| Focus mode | Auto focus/primary focus/manual focus/semi-automatic focus |
| Area exposure/focus | support |
| Through the fog | support |
| Day and night conversion | Automatic,manual,timed,alarm triggered |
| 3D noise reduction | support |
| Picture superposition | Support BMP 24 bit image superposition,can be customized area |
| area-of-interest | ROI supports three code streams to set four fixed areas |
| Network function | |
| Memory function | Support USB extension Micro SD/SDHC/SDXC card(256G)disconnected local storage,NAS(NFS,SMB/CIFS) |
| Support agreement | TCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,RTP,RTSP,RTCP,NTP,SMTP,SNMP,IPv6 |
| Interface protocol | ONVIF(PROFILE S,PROFILE G) |
| General | |
| Material | Stainless steel/titanium alloy |
| Depth Rating | 0-300M |
| Power supply | DC 24V |
| Operating temperature | -40℃~+60℃ |
| Dimensions | φ195X360mm(34mm connector are not included) |
| Weight | About 21Kg(stainless steel as an example) |
| Accessories | |
| Package | Cable,adapter,warranty card,certificate,suppression report |
| Customizable | Sensor(temperature,pressure...)Display control terminal |
