| Brand Name: | KAIDUN |
| Model Number: | MC300 |
| MOQ: | 1 |
| Payment Terms: | T/T |
| Supply Ability: | 5000 units/year |

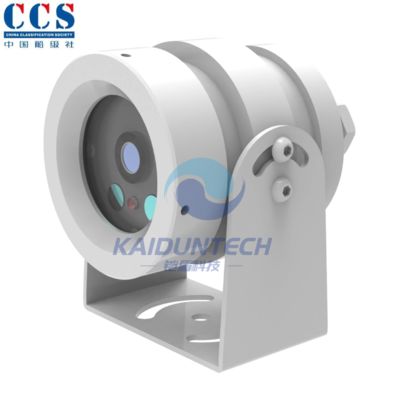

High-performance marine-grade surveillance camera with CCS Type Approval, designed for harsh maritime environments.
7-day replacement policy for quality issues with a 1-year quality guarantee period.
Warranty exclusions:
For service disputes, please contact Kaidun customer service center. Warranty valid only with service provider stamp.
Ideal for various marine and industrial environments including:
| Camera | |
|---|---|
| Sensor | 1/2.7", 8.0 megapixel, progressive scan, CMOS |
| Minimum Illumination | Color: 0.005 lux (F1.6, AGC ON), 0 lux with IR |
| Day/Night | IR-cut filter with auto switch (ICR) |
| Shutter | Auto/Manual, 1~1/100000 s |
| Adjustment Angle | Pan: 0°~360° | Tilt: 0°~90° | Rotate: 0°~360° |
| S/N Ratio | >56dB |
| WDR | 120dB |
| Lens | |
| Lens Type | 2.8mm @F1.6 | 4.0mm @1.6 |
| Field of View (H) | 98.3° | 91.2° |
| Field of View (V) | 53.3° | 47.9° |
| DORI Distance | 2.8mm: Detect 84m, Observe 33.6m, Recognize 16.8m, Identify 8.4m 4.0mm: Detect 120m, Observe 48m, Recognize 24m, Identify 12m |
| Illuminator | |
| IR Range | 15m |
| Wavelength | 850nm |
| General | |
| Power | DC 12V±25%, PoE (IEEE 802.3af), ≤8W |
| Dimensions | 141*104*124mm |
| Weight | ≤2.4kg |
| Material | Stainless Steel 316L |
| Operating Temp | -40°C~60°C, Humidity ≤100% RH (non-condensing) |
| Ingress Protection | IP68 |
| Surge Protection | 2KV |
Anti-shake SS316L Bracket
SS316L Exe Type Junction Box
Explosion Proof & Anti-corrosion Flexible Hose
