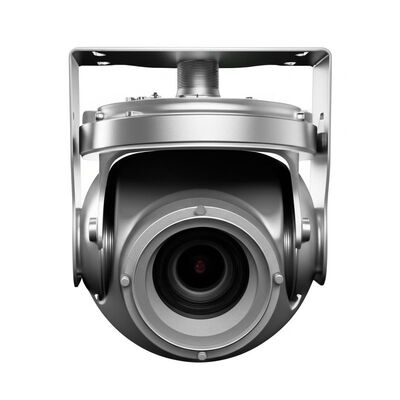

Explosion Proof CCTV Camera with Full HD Resolution IP67 Ingress Protection and Infrared Night Vision for Hazardous Industrial Areas

Brand Name:	KAIDUN
Model Number:	KDQ-EX-PTZ2001IR04(N)
MOQ:	1
Payment Terms:	T/T
Supply Ability:	5000 units/year

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Packaging Details:

Wooden box packaging / cardboard box packaging

Supply Ability:

5000 units/year

Highlight:

Full HD Resolution Explosion Proof CCTV Camera

IP67 Ingress Protection Explosion Proof Network Camera

Infrared Night Vision Hazardous Area CCTV Camera

Product Description

Infrared Night Vision Explosion Proof Surveillance Camera

Designed for Safe Operation in Hazardous Industrial Areas

Product Overview

The Explosion Proof CCTV Camera is a state-of-the-art surveillance solution designed specifically for hazardous environments where safety and security are paramount. Engineered to withstand extreme conditions including flammable gases, vapors, and dust, this camera is ideal for oil and gas, chemical processing, mining, and manufacturing industries.

Key Features

High-quality explosion-proof design for hazardous environments
Durable industrial housing withstands extreme conditions
Certified explosion-proof security ensuring safety compliance
Advanced video surveillance with high-resolution imaging
Weatherproof and corrosion-resistant construction
Supports remote monitoring via network connectivity
Robust design prevents ignition in explosive atmospheres
Easy installation and system integration
Wide operating temperature range (-40°C to +60°C)
24/7 reliable performance with low maintenance

Technical Specifications

Product Name	Explosion Proof Video Camera
Model	EPVC-2024
Camera Type	Explosion Proof Network Camera
Image Sensor	1/2.8" CMOS Sensor
Resolution	1920 x 1080 (Full HD)
Lens	4mm Fixed Lens / Optional 2.8mm, 6mm
Video Compression	H.265 / H.264
Frame Rate	Up to 30fps
Explosion Proof Rating	Ex d IIC T6 Gb
Ingress Protection	IP67
Operating Temperature	-40°C to +60°C
Power Supply	DC12V / PoE (Power over Ethernet)
Network Interface	RJ45 10/100Mbps Ethernet
Dimensions	Ø120mm x 200mm
Weight	1.8kg
Additional Features	IR Night Vision, Motion Detection, Remote Access

Applications

This ATEX-certified camera is extensively used in oil and gas refineries, chemical plants, petrochemical facilities, mining operations, pharmaceutical manufacturing, and grain storage facilities where explosive atmospheres are a concern.

Support & Services

Installation Support

Professional installation by qualified personnel is recommended to maintain explosion-proof integrity.

Maintenance

Regular inspections and cleaning ensure optimal performance while maintaining safety certifications.

Warranty

Manufacturer's warranty covers defects in materials and workmanship when serviced by authorized centers.

Frequently Asked Questions

What is the brand and model number of this camera?

Manufactured by KAIDUN, model KDQ-EX-PTZ2001IR04(N).

Does this camera have safety certifications?

Yes, it is ATEX certified for explosive environments.

What are the packaging and shipping options?

Each unit is securely packaged in custom foam within sturdy boxes, with wooden or cardboard options available.
