| Brand Name: | KAIDUN |
| Model Number: | KDY-EX-PTZ4030IRW02 |
| MOQ: | 1 |
| Payment Terms: | T/T |
| Supply Ability: | 5000 units/year |

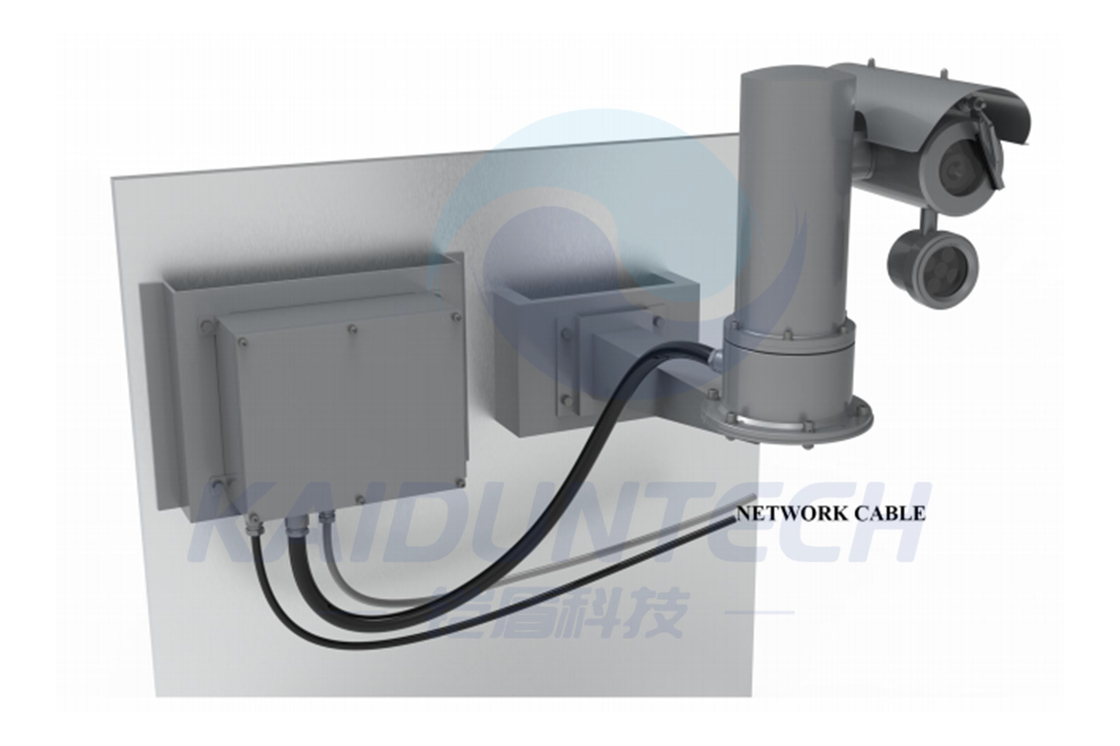

Marine Grade Anti-Corrosion PTZ IR Camera
Key Faetures
Application Scenarios
Container Vessel, Bulk Vessel, Oil Tanker, Cruise Vessel, Yacht, Oil/Gas Drilling Platform, Oil Depots, Sea Port
Other application areas:desert drill sites,offshore rigs,mechanical engineering,biogas plants,military,electric power,hydraulic power,railway,metallurgy,natural gas extraction,drilling platform,aerospace,marine,armed police,border defense,vessels,fireworks production,ports etc.
Service
Parameters
| Type | KDY-EX-PTZXXXXIRW02 |
| Material | Stainless Steel 316L |
| Protection Class | P68 |
| Temp.range min | -40℃ |
| Temp.range max | +60℃ |
| Vibration(0-100Hz) | 0.7g |
| Video | IP |
| Operational Areas | Outdoor |
| Mounting | Wall mounted,column,Upside etc |
| Wiper/IR | Wiper/IR |
| Pan/Tilt | Remote operated |
| Rotation Vertical | ±90° |
| Rotation Horizontal | 360° |
| Surface | powder coating or electric polishing |
| Resolution | 2MP,3MP,4MP,5MP,8MP etc |
| Zoom | 20x,30x,44x etc |
| Image Sensor | 1/2.8"Progressive Scan CMOS |
| Min.illumination | Color:0.002 lux @F1.2(AGC ON),B/W:0.0002 lux @F1.2(AGC ON) |
| CCTV add-on | Heater ,fan |
| Functions | Cross-line detection,intrusion alarm,illegal parking,automatic tracking,face detection etc |
| Voltage | AC100V-240V |
| Weight | 21kg |
| Certificates | DNVTA/ATEX/CE/FCC |
| EX Mark | ExII 2G Ex db op is IIC T6 Gb Ⅱ 2DEx tb op isIIC T80℃ Db IP68 IP66 |
Certificate
