| Brand Name: | KAIDUN |
| Model Number: | KDY-EX-PTZ2036(IR)W02(A) |
| MOQ: | 1 |
| Payment Terms: | T/T |
| Supply Ability: | 5000 units/year |

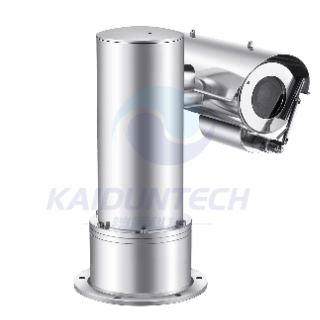

2MP 36X Explosion Proof Anti-Corrosion PTZ Analogue Camera
Key Features
Application Scenarios
Other application areas:desert drill sites,offshore rigs,mechanical engineering,biogas plants,military,electric power,hydraulic power,railway,metallurgy,natural gas extraction,drilling platform,aerospace,marine,armed police,border defense,vessels,fireworks production,ports etc.
Service
Specification
| Mage Sensor | 1/2.5"2.0Megapixel CMOS NVP2441H+SONY322 |
| Lens Parameter | Lens Zoom:36X,3.9~140.4mm;FNo:1.6~3.5 |
| Max.Resolution | 1920(H)*1080(V)/1200TV ,Line/1920*1080p(AHD/CVI/TVI) |
| Frames per second | 25/30 fps |
| Min.Illumination | Color:0.01Lux@(F1.2,AGC ON),OLux with IR Black &White:0.001Lux@(F1.2,AGC ON),OLux with IR |
| Output Format | PAL/NTSC:1920(H)*1080(V) |
| Video output: | 1.0Vp-p,75Ω |
| Focus Mode | Bus control focus/Button control focus |
| Control connector | Bys contol DC±3V~±12V |
| Denoise | 2D/3D |
| Backlight compensation | On/Off |
| Auto IRIS | YES |
| AF mode | Normal/Zoom Trigger/Interval |
| AWB mode | Auto/Manual/outdoor/indoor |
| AE mode | Auto/shutter priority/IRIS priority/manual |
| Electronic shutter | 1/25s~1/10000s |
| IR cut mode | Auto/day/night |
| Privacy Zone | 24 Mask |
| OSD | Title/Display |
| Protocol | Sony,Pelco-D |
| General | |
| Power | AC100V-240V |
| Dimensions(L*W*H) | 329*303*410mm |
| Net Weight | ≤21kg |
| Material | Stainless Steel 316L |
| Working Environment | -40℃~60℃,Humidity:≤100%RH(non-condensing) |
| Strorage Environment | -40℃~60℃,Humidity:s100%RH(non-condensing) |
| Surge Protection | 2KV |
| Ingress Protection | IP68 |
| Inlet Hole Specification | 1 Entry hole G3/4 |
| Installation Method | Wall or column platform installation |
| PTZ | |
| Rotation Angel | Horizontal:0°-360° ；Vertical: -90°-+90° |
Certificate
