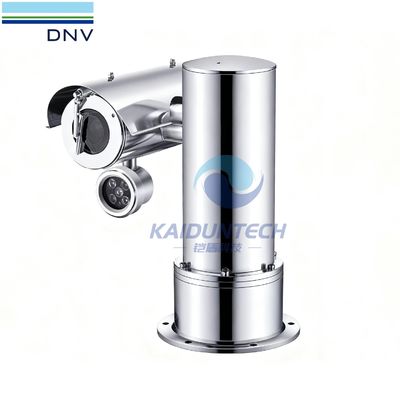

DNV Type Approval Marine Grade Anti-Corrosion 33X PTZ IR Camera

Brand Name:	KAIDUN
Model Number:	KDY-EX-PTZ4033IRW02
MOQ:	1
Payment Terms:	T/T
Supply Ability:	5000 units/year

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

DNV TA /ATEX/CE/FCC

Material:

Stainless Steel 316L

Protection Class:

IP68

Resolution:

4MP

Zoom:

33X Optical Zoom

Voltage:

AC100-240V

Weight:

21kg

Dimensions(L*W*H):

205*210*416mm

CCTV Add-on:

Heater,fan

Packaging Details:

Wooden box packaging / cardboard box packaging

Supply Ability:

5000 units/year

Highlight:

4.5-148.5mm Focal length

4MP 33X optical zoom

IR distance up to 150 meters

Product Description

DNV Type Approval CCTV Camera

DNV Approval Marine Grade Anti-Corrosion PTZ IR Camera

Key Features

Marine-Grade PTZ IR Camera system including:
- Stainless Steel 316L Enclosure
- 4MP 33X optical zoom, 4.5-148.5mm Focal length
- IR distance up to 150 meters (300m IR Laser optional)
- Pan & Tilt Function
- AC100V-240V Power supply (POE++, AC/DC24V optional)
Accessories including:
- 1x KDJ004 ATEx Exe Corrosion Proof JB with powder coating
- 1x KDB005T Anti-shake SS316L Wall Mounting Bracket
- 1x 1.5 meters Explosion Proof Hose with 316L connectors

Application Scenarios

Container Vessel, Bulk Vessel, Oil Tanker, Cruise Vessel, Yacht, Oil/Gas Drilling Platform, Oil Depots, Sea Port

Other application areas: desert drill sites, offshore rigs, mechanical engineering, biogas plants, military, electric power, hydraulic power, railway, metallurgy, natural gas extraction, drilling platform, aerospace, marine, armed police, border defense, vessels, fireworks production, ports etc.

Service

You can have the product replaced within 7 days due to quality problems. The quality guarantee period for this product is one year.

The product is not covered under quality guarantee in the following conditions:

Client cannot provide the quality guarantee card and invoice or receipt of purchasing
Improper service conditions, such as unmatched power, ambient temperature, humidity or lighting caused malfunction
Malfunction caused by accident, negligence, disaster, incorrect operation or network attack
Malfunction or damage in installation, repair, modification or dismantle caused by unauthorized personnel
Out of guarantee period

If you have any dissent on technical service provided by distributor, please lodge a complaint to the customer's service center of Kaidun.

The quality guarantee card will be validated only after it's stamped by the after-service provider.

Parameters

Type	KDY-EX-PTZXXXXIRW02
Material	Stainless Steel 316L
Protection Class	P68
Temp.range min	-40℃
Temp.range max	+60℃
Vibration(0-100Hz)	0.7g
Video	IP
Operational Areas	Outdoor
Mounting	Wall mounted, column, Upside etc
Wiper/IR	Wiper/IR
Pan/Tilt	Remote operated
Rotation Vertical	±90°
Rotation Horizontal	360°
Surface	powder coating or electric polishing
Resolution	4MP
Zoom	33X
Image Sensor	1/2.7" Progressive Scan CMOS
Min.illumination	Color: 0.003 lux @F1.65(AGC ON), B/W: 0.002 lux @F1.65(AGC ON)
CCTV add-on	Heater, fan
Functions	Cross-line detection, intrusion alarm, illegal parking, automatic tracking, face detection etc
Voltage	AC100V-240V
Weight	21kg
Certificates	DNVTA/ATEX/CE/FCC
EX Mark	ExII 2G Ex db op is IIC T6 Gb Ⅱ 2DEx tb op isIIC T80℃ Db IP68 IP66
