| Brand Name: | KAIDUN |
| Model Number: | KDC-EX-PTNBIE□□□□ |
| MOQ: | 1 |
| Payment Terms: | T/T |
| Supply Ability: | 5000 units/year |

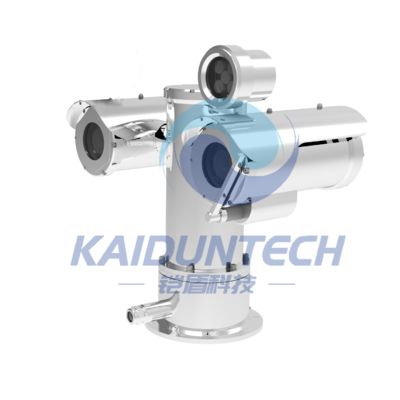

Explosion Proof Pan/Tilt Dual Thermal&Gas Detection IR Optical 38X Zoom Camera
Key Features
| Material | Stainless Steel 316L |
| Protcetion Class | IP68 |
| Temp.range min | -40℃ |
| Temp.range max | +70℃ |
| Video | IP |
| Operational Areas | Outdoor |
| Mounting | Wall mounted,Column Installation |
| Surface | Powder coating or electric polishing |
| IR Range | 100m(300m optional) |
| Thermal Resolution | 640*512 |
| Thermal Focal Length | 6mm/9mm /35mm |
| Visible Resolution | 2MP,4MP,8MP etc |
| Visible Zoom | 30X/33X etc |
| CCTV add-on | Gas detcetion with temperature measurement |
| Temperature Measurement Range | -20℃~+550℃/-20℃~+650℃/0℃~2000℃ etc |
| Voltage | DC24V/POE++/AC100-240V power optional |
| Weight | ≤32kg |
| Dimensions(L*W*H) | 462*290*478.5mm |
| Ex Grade | Ex db I Mb Ex db IIC T6 Gb,Zone 1&2 Ex tb ⅢIC T85'℃ Db,Zone 21&22 |
| Certificates | IECEX ATEX Certification Body:DNV |
Application Scenarios
Other application areas:desert drill sites,offshore rigs,mechanical engineering,biogas plants,military,electric power,hydraulic power,railway,metallurgy,natural gas extraction,drilling platform,aerospace,marine,armed police,border defense,vessels,fireworks production,ports etc.
