| Brand Name: | KAIDUN |
| Model Number: | KDY-PTZ-T |
| MOQ: | 1 |
| Payment Terms: | T/T |
| Supply Ability: | 5000 units/year |
| Attribute | Value |
|---|---|
| Thermal Resolution | 640×512 |
| Thermal Focal Length | 9.1mm, 13mm, 19mm, 25mm, 35mm, 4x Digital zoom |
| Visible Resolution | 2688×1520 |
| Visible Focal Length | 6.4mm-128mm, 20x optical zoom |
| Power Supply | DC24V |
| Dimension (mm) | 358×164.5×203 (W×H×L) |
| Weight | 4.5kg |

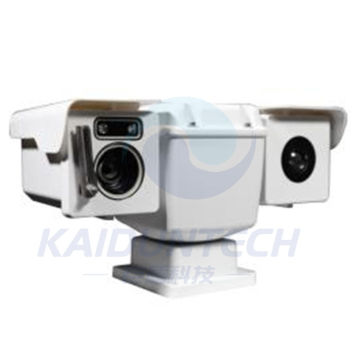

Advanced dual-spectrum PTZ network camera combining thermal and visible imaging for comprehensive 24/7 surveillance solutions.
| Detector Type | VOx Uncooled FPA detector |
| Spectral Range | 8~14μM |
| NETD | ≤40MK @25°C, F#1.0 |
| Max. Resolution | 640×512 |
| Pixel | 12μM |
| Focal Length | 9.1mm, 13mm, 19mm, 25mm, 35mm, 4x Digital Zoom |
| Sensor | 1/1.8" 4MP CMOS sensor |
| Max. Resolution | 2688×1520 |
| Focal Length | 6.4mm~128mm 20x optical zoom; 16x Digital Zoom |
| Min. Illumination | Color: 0.05Lux@(F1.6, AGC ON); B/W: 0.01Lux@(F1.6, AGC ON) |
Container vessels, bulk vessels, oil tankers, cruise vessels, yachts, oil/gas drilling platforms, oil depots, sea ports, desert drill sites, offshore rigs, mechanical engineering, biogas plants, military applications, electric power facilities, hydraulic power stations, railway systems, metallurgy plants, natural gas extraction sites, aerospace facilities, marine applications, border defense, and fireworks production facilities.
7-day replacement for quality issues with 1-year quality guarantee. Warranty excludes:
